Sump Model Study

Dhiraj Heavy Equipments Pvt Ltd undertakes sump model study for satisfactory operation of pumps. The study includes Vortex Formation, pumps for lift irrigation schemes; cooling water pumps, jack well water supply, etc.

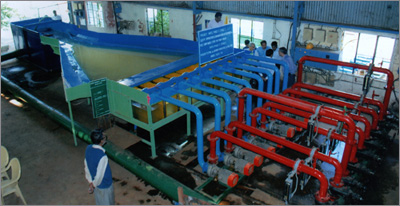

Dhiraj Heavy Equipments Pvt Ltd has already carried more than 100 experimental sump model studies and verified the results & in order to check suitability of Proposed prototype sump site a geometrically similar model sump with different scale ratio are constructed in mild steel & acrylic material.

Objective of Sump Model Studies
It is always difficult to predict correctly from theoretically aspects, the actual flow condition in the prototype sump model where the flow condition are complex as may normally observed in many sumps. it is advisable to construct a geometrically similar sump model of suitable scale based on fraud number similarity. During sump model studies the nature of flow pattern and likely problem Viz. Vortex formation, air entrainment, swirl beyond acceptable limits, submerged vortex etc. in prototype sump are revealed right in advance (i.e. before the actual construction of sump model is completed). The suitability of proposed prototype sump dimension is thus ascertained under various operating condition i. e. minimum water level & maximum water level with different combination of sump. Necessary modification in are study and suggestion to arrive at optimum configuration for satisfactory performance of sump.
